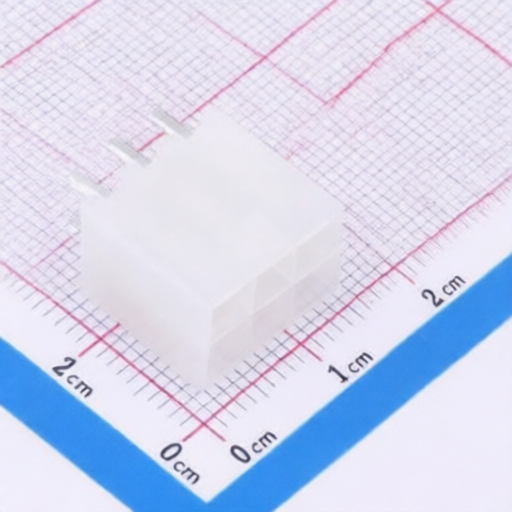

chxunda XD-5566-2*3A
Manufacturer:
chxunda
Asian Brands
Mfr. Part #:
XD-5566-2*3A
Package:
Through Hole,P=4.2mm
Customer #:
Key Attributes:
4.20MM PITCH 5566 CONNECTOR DOUBLE ROW TYPE
Description:
2x3P Tin 4.2mm 300V 3 2 -25℃~+85℃ Through Hole Through Hole,P=4.2mm Headers, Male Pins RoHS
Products Specifications
Manufacturer:
Package:
Through Hole,P=4.2mm
Y-Width of Bottom Edge on Board:
9.8mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x3P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Pitch:
4.2mm
Voltage Rating (Max):
300V
Number of PINs Per Row:
3
Number of Rows:
2
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
13.1mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
