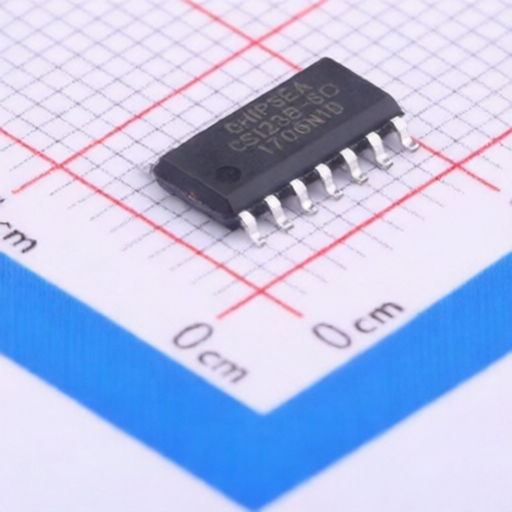

CHIPSEA CS1238-SOP14
Manufacturer:
CHIPSEA
Asian Brands
Mfr. Part #:
CS1238-SOP14
Package:
SOP-14
Customer #:
Key Attributes:
24-bit Sigma-Delta ADC
Description:
24 Bit Analog to Digital Converter 2 Input Sigma-Delta SOP-14
Datasheet:
CHIPSEA CS1238-SOP14
Products Specifications
Manufacturer:
Package:
SOP-14
Interface:
SPI
Quiescent Current (Iq):
100nA
Voltage - Supply:
3V~5.5V
Sampling Rate:
10Hz
Number of Channels:
2
Integral non - linearity:
15LSB
Temperature Range:
-40℃~+85℃
Data Rate:
10Hz;40Hz;640Hz;1.28kHz
Clock/Oscillator:
Built-in
Clock Frequency:
5.2MHz
Voltage Reference:
Built-in;External
Resolution(Bits):
24
Temperature Sensors:
Built-in
ADC architecture:
Sigma-Delta
Programmable Gain:
Support
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
