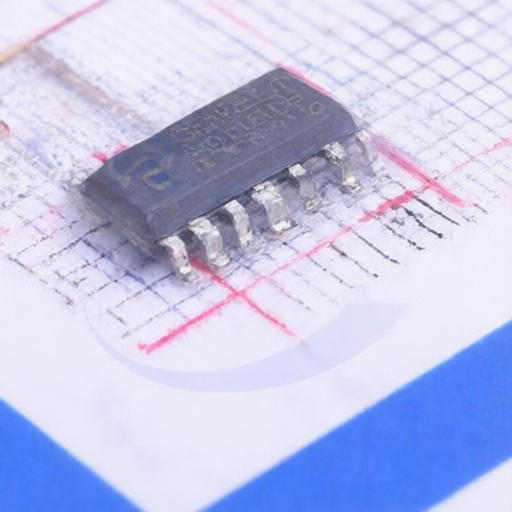

CHIPSEA CS1180S
Manufacturer:
CHIPSEA
Asian Brands
Mfr. Part #:
CS1180S
Package:
SOP-16
Customer #:
Key Attributes:
20-bit Sigma-Delta ADC
Description:
20 Bit Analog to Digital Converter 1 Input SOP-16
Datasheet:
CHIPSEA CS1180S
Products Specifications
Manufacturer:
Package:
SOP-16
Temperature Range:
-40℃~+85℃
Data Rate:
15Hz;7.5Hz;3.75Hz
Clock/Oscillator:
External
Clock Frequency:
1MHz~5MHz
Voltage Reference:
External
Interface:
SPI
Resolution(Bits):
20
Voltage - Supply:
2.7V~5.25V
Sampling Rate:
19.2kHz
Number of Channels:
1
ADC architecture:
Sigma-Delta
Programmable Gain:
Support
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CHIPSEA
123 Products
CHIPSEA, established in September 2003, is a company dedicated to the design of full-signal-chain integrated circuits. The company primarily produces high-precision ADCs, highly reliable MCUs, measurement algorithms, and one-stop IoT solutions.
