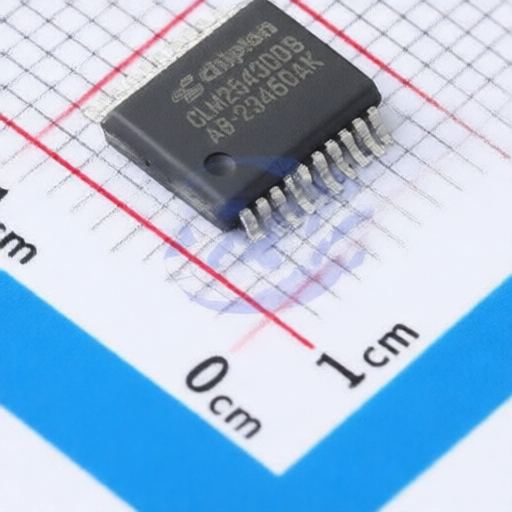

CHIPLON CLM2543CDB
Manufacturer:
CHIPLON
Asian Brands
Mfr. Part #:
CLM2543CDB
Package:
SSOP-20
Customer #:
Key Attributes:
12-bit analog-to-digital converter with serial control and analog input
Description:
12 Bit Analog to Digital Converter 11 Input SAR SSOP-20
Datasheet:
CHIPLON CLM2543CDB
Products Specifications
Manufacturer:
Package:
SSOP-20
Temperature Range:
0℃~+70℃
Clock/Oscillator:
Built-in
Clock Frequency:
4.1MHz
Interface:
Serial
Quiescent Current (Iq):
1mA
Resolution(Bits):
12
Voltage - Supply:
4.5V~5.5V
Number of Channels:
11
ADC architecture:
SAR
Integral non - linearity:
1LSB
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CHIPLON
46 Products
Chiplon Microelectronics Co., Ltd.
(hereinafter referred to as "Chiplon") was established in 2011. It is a national high-tech enterprise specializing in the design of digital signal processors (DSP) integrated circuits and providing system solutions for industrial control. The company's main products include DSPs, MCUs, interfaces, amplifiers, development boards, and Ethernet PHY chips. For over a decade, Chiplon has delivered both standard and customized development solutions for industrial Ethernet fieldbus applications based on protocols such as EtherCAT, PROFINET, PROFIBUS, and TSN. The company serves diverse industries, including industrial automation, robotics, new energy, and rail transportation. Within China's industrial communications and control sectors, Chiplon has achieved high market penetration. Chiplon's products are continuously optimized and self-innovated, surpassing similar market offerings in terms of performance indicators. These products feature higher clock spee
