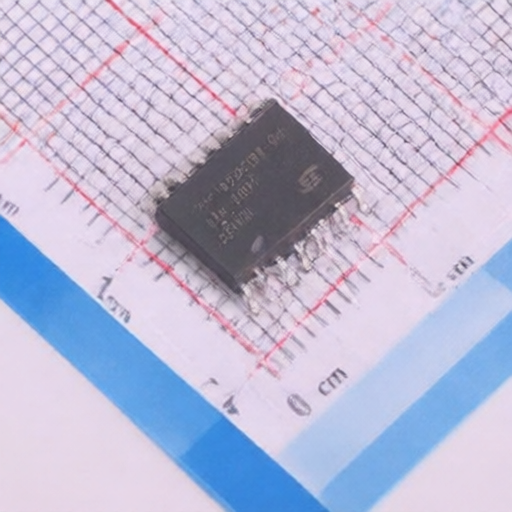

Chipanalog CA-IS3221BW-Q1
Manufacturer:
Chipanalog
Asian Brands
Mfr. Part #:
CA-IS3221BW-Q1
Package:
SOIC-16-WB
Customer #:
Key Attributes:
Sink current/Source current, Isolated dual-channel gate driver
Description:
5A 16ns 12ns 6A SOIC-16-WB Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-16-WB
Driven Configuration:
Low Side;High Side;Half-Bridge
Operating Temperature:
-40℃~+125℃@(Ta)
Isolation voltage(Vrms):
5700
Propagation Delay(tpd):
100ns;100ns
Load Type:
IGBT;MOSFET
Current - Output High(IOH):
5A
Rise Time:
16ns
Voltage - Supply:
3V~18V;10V~25V
Fall Time:
12ns
CMTI(kV/us):
100kV/us
Number of Channels:
2
Current - Output Low(IOL):
6A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
