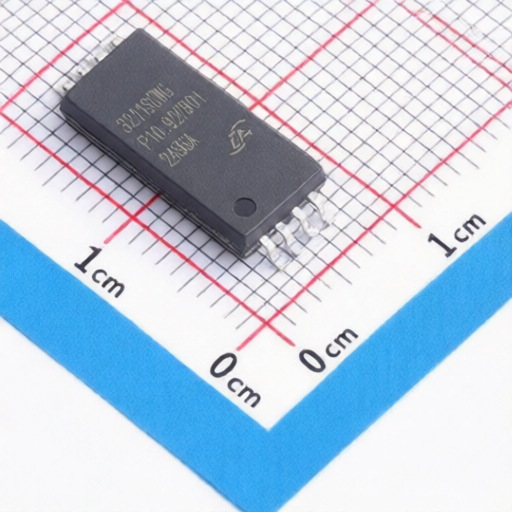

Chipanalog CA-IS3211SCWG
Manufacturer:
Chipanalog
Asian Brands
Mfr. Part #:
CA-IS3211SCWG
Package:
SOIC-8-WWB
Customer #:
Key Attributes:
6A Sink/5A Source, Opto-Compatible Single-Channel Reinforced Isolated Gate Driver
Description:
5A 14V~30V 28ns 25ns 6A SOIC-8-WWB Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-8-WWB
Driven Configuration:
Low Side;High Side
Operating Temperature:
-40℃~+150℃@(Tj)
Propagation Delay(tpd):
105ns;105ns
Isolation voltage(Vrms):
7500
Load Type:
MOSFET;IGBT
Current - Output High(IOH):
5A
Voltage - Supply:
14V~30V
Rise Time:
28ns
Fall Time:
25ns
CMTI(kV/us):
100kV/us
Number of Channels:
1
Current - Output Low(IOL):
6A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
