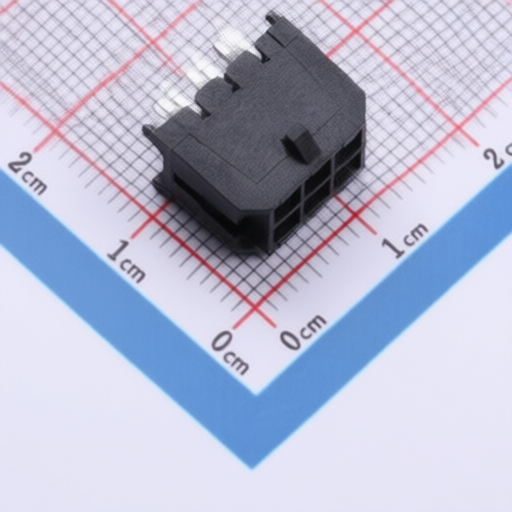

CHIN-BAN WB3001DS-06T3
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
WB3001DS-06T3
Package:
Through Hole,P=3mm
Customer #:
Description:
2x3P Tin -40℃~+105℃ 3mm 250V 3 2 3mm Through Hole Through Hole,P=3mm Headers, Male Pins RoHS
Products Specifications
Manufacturer:
Package:
Through Hole,P=3mm
Y-Width of Bottom Edge on Board:
8.8mm
Pins Structure:
2x3P
Reference Series:
-
Contact Plating:
Tin
Contact Material:
PA46;Brass
Operating Temperature:
-40℃~+105℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
-
Pitch:
3mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
3
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
12.65mm
Row Spacing:
3mm
Z-Height of the Board:
11.2mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
