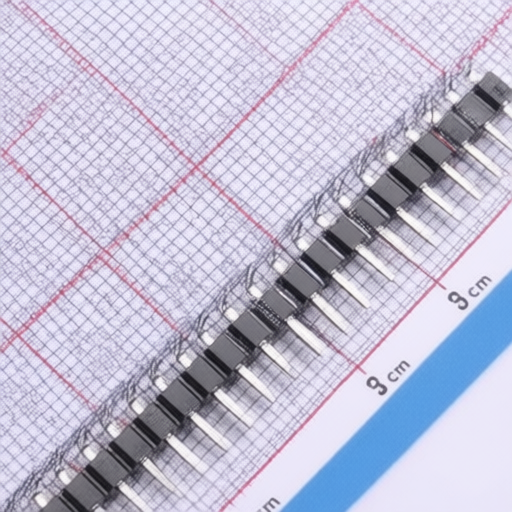

CHIN-BAN P6E22C-354426-B1P
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
P6E22C-354426-B1P
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Description:
Pin Header 22 Position 2.54mm Pitch Single Row Through Hole, Right Angle -40℃~+105℃
Datasheet:
CHIN-BAN P6E22C-354426-B1P
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Pins Structure:
1x22P
Number of Pins:
22P
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Pitch:
2.54mm
Insulation Height:
2.54mm
Length of Mating Pin:
3.5mm
Voltage Rating (Max):
250V
Length of End Connection Pin:
2.6mm
Current Rating-Signal:
3A
Number of Rows:
1
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
