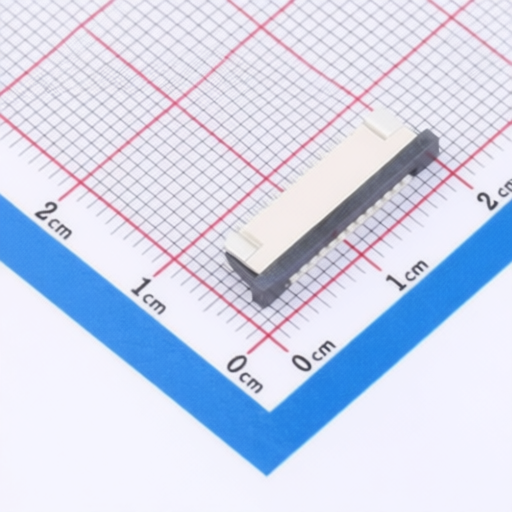

CAX CAX-AFA07-12XCB-H2.5

CAX CAX-AFA07-12XCB-H2.5

Name: CAX CAX-AFA07-12XCB-H2.5
Brand: CAX

Manufacturer: CAX Asian Brands

Mfr. Part #: CAX-AFA07-12XCB-H2.5

Package: SMD,P=1.0mm,Surface Mount,Right Angle

Customer #:

Description: Slide Lock -55℃~+85℃ 12P 1mm 500mA 50V Top Contact Surface Mount, Right Angle SMD,P=1.0mm,Surface Mount,Right Angle FFC, FPC (Flat Flexible) Connector Assemblies RoHS

Datasheet: CAX CAX-AFA07-12XCB-H2.5

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

CAX

Package:

SMD,P=1.0mm,Surface Mount,Right Angle

Locking Feature:

Slide Lock

Operating Temperature:

-55℃~+85℃

Number of Contacts:

12P

Pitch:

1mm

Current Rating:

500mA

Voltage Rating (Max):

50V

Contact Type:

Top Contact

Mounting Type:

Surface Mount, Right Angle

FFC, FCB Thickness:

0.3mm

Contact Plating:

Tin

Contact Material:

Copper alloy

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	1500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
