CAX CAX-AFC01-16XCB-H2.0

CAX CAX-AFC01-16XCB-H2.0

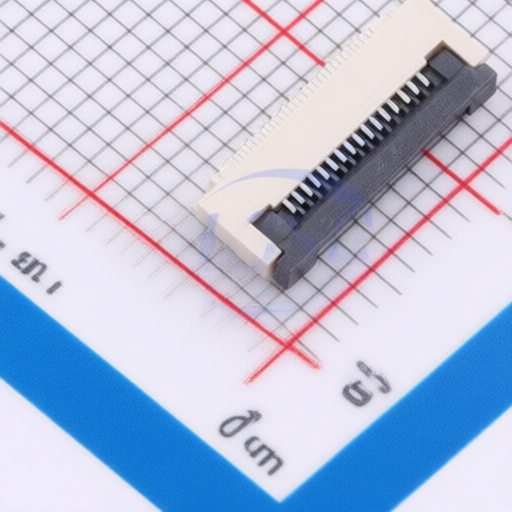

Name: CAX CAX-AFC01-16XCB-H2.0
Brand: CAX

Manufacturer: CAX Asian Brands

Mfr. Part #: CAX-AFC01-16XCB-H2.0

Package: SMD,P=0.5mm,Surface Mount,Right Angle

Customer #:

Description: Hinged Lid -55℃~+85℃ 16P 0.5mm 500mA 50V Bottom Contact Surface Mount, Right Angle SMD,P=0.5mm,Surface Mount,Right Angle FFC, FPC (Flat Flexible) Connector Assemblies RoHS

Datasheet: CAX CAX-AFC01-16XCB-H2.0

Products Specifications

Category:

Connectors, Interconnects/FFC, FPC (Flat Flexible) Connectors/FFC, FPC (Flat Flexible) Connector Assemblies

Manufacturer:

CAX

Package:

SMD,P=0.5mm,Surface Mount,Right Angle

Locking Feature:

Hinged Lid

Operating Temperature:

-55℃~+85℃

Number of Contacts:

16P

Pitch:

0.5mm

Current Rating:

500mA

Voltage Rating (Max):

50V

Contact Type:

Bottom Contact

Mounting Type:

Surface Mount, Right Angle

FFC, FCB Thickness:

0.3mm

Contact Plating:

Tin

Contact Material:

Copper alloy

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	2000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
