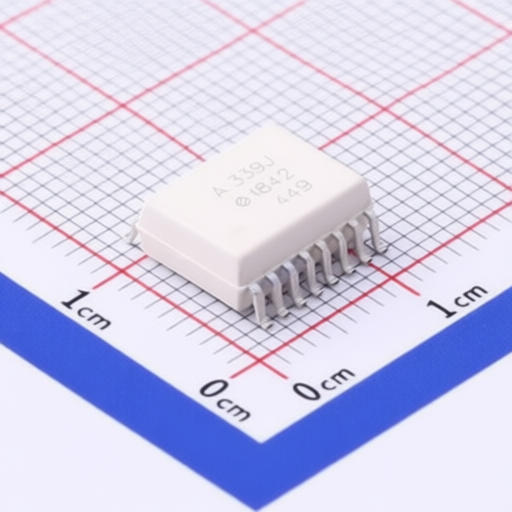

Broadcom ACPL-339J-500E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-339J-500E
Package:
SO-16-300mil
Customer #:
Key Attributes:
Dual-Output Gate Drive Optocoupler Interface with Integrated (VcE) DESAT Detection, FAULT and UVLO Status Feedback
Description:
5.5A 5V 1.55V 3.3V~5.5V DC SO-16-300mil Logic Output Optoisolators RoHS
Datasheet:
Broadcom ACPL-339J-500E
Products Specifications
Category:
Manufacturer:
Package:
SO-16-300mil
Power Dissipation:
600mW
Output Current:
5.5A
Low Level Delay Time:
150ns
High Level Delay Time:
150ns
Reverse Voltage:
5V
Voltage - Forward(Vf):
1.55V
Voltage - Supply:
3.3V~5.5V
Forward Current(If):
10mA
Operating Temperature:
-40℃~+105℃
CMTI(kV/us):
35kV/us
Number of Channels:
2
Input threshold current:
5mA
Isolation Voltage(Vrms):
5kV
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 850 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
