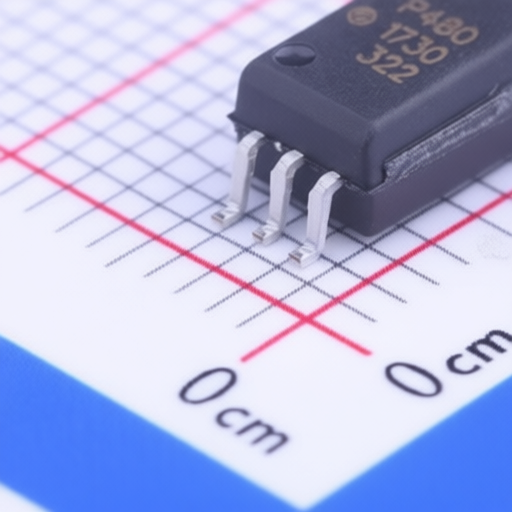

Broadcom ACPL-P480-500E

Broadcom ACPL-P480-500E

Name: Broadcom ACPL-P480-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: ACPL-P480-500E

Package: SOP-6-6.8mm

Customer #:

Key Attributes: High-speed optocouplers for IPM applications

Description: 25mA 5V 1.5V 4.5V~20V DC SOP-6-6.8mm Logic Output Optoisolators RoHS

Datasheet: Broadcom ACPL-P480-500E

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Logic Output Optoisolators

Manufacturer:

Broadcom

Package:

SOP-6-6.8mm

Power Dissipation:

210mW

Output Current:

25mA

Low Level Delay Time:

350ns

High Level Delay Time:

350ns

Reverse Voltage:

Voltage - Forward(Vf):

1.5V

Voltage - Supply:

4.5V~20V

Forward Current(If):

10mA

Operating Temperature:

-40℃~+100℃

CMTI(kV/us):

20kV/us

Number of Channels:

Input threshold current:

5.5mA

Isolation Voltage(Vrms):

3.75kV

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02
