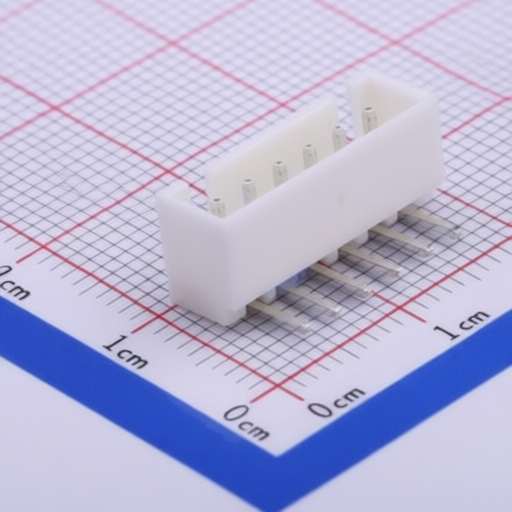

BOOMELE(Boom Precision Elec) XHB-6AW
Manufacturer:
BOOMELE(Boom Precision Elec)
Asian Brands
Mfr. Part #:
XHB-6AW
Package:
Through Hole,Right Angle,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 6POS 2.5mm
Description:
Connector Header 6 position 2.5mm Pitch Right Angle
Datasheet:
BOOMELE(Boom Precision Elec) XHB-6AW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.5mm
Y-Width of Bottom Edge on Board:
7mm
Reference Series:
-
Pins Structure:
1x6P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
6
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
17.5mm
Z-Height of the Board:
5.75mm
Row Spacing:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
BOOMELE(Boom Precision Elec)
940 Products
Boom Precision Electronics Co., Ltd.Zhejiang (former Yueqing Boom Electronics CO.,LTD), is a manufacturer engaged in development and manufacturing of various electronic connectors. The products are widely used in household appliances, computers, communication networks, optical, toys and other fields. It has powerful technical force, with over 500 employees (more than 100 medium and senior management and technical personnel), 6000m2 factory buildings, complete precision mold processing equipment and product automation production lines. It's capable of developing more than 300 sets of molds, with the annual output of 3 billion connectors and over 6 billion terminals.
