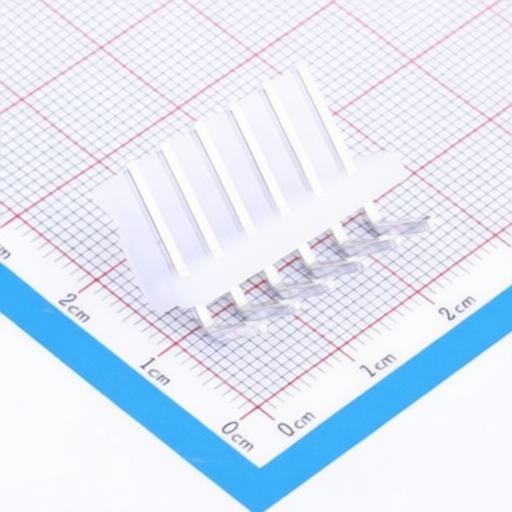

BOOMELE(Boom Precision Elec) CH3.96-6A
Manufacturer:
BOOMELE(Boom Precision Elec)
Asian Brands
Mfr. Part #:
CH3.96-6A
Package:
Through Hole,Right Angle,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 6POS 3.96mm
Description:
Connector Header 6 position 3.96mm Pitch Right Angle -25℃~+85℃
Datasheet:
BOOMELE(Boom Precision Elec) CH3.96-6A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3.96mm
Y-Width of Bottom Edge on Board:
9.7mm
Reference Series:
CH
Pins Structure:
1x6P
Contact Plating:
Tin
Contact Material:
-;-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
3.96mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
6
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
19.8mm
Z-Height of the Board:
12.4mm
Row Spacing:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
