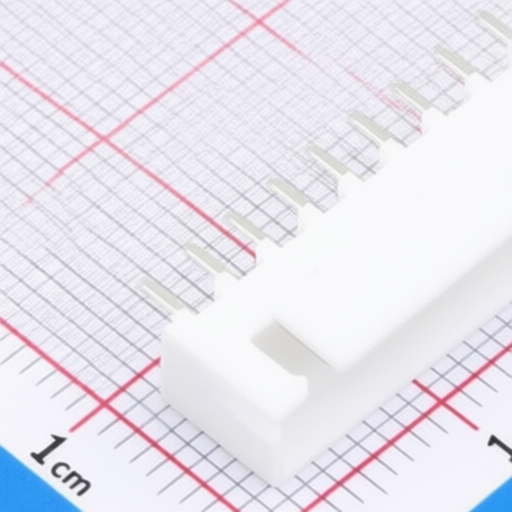

BOOMELE(Boom Precision Elec) XH-10A
Manufacturer:
BOOMELE(Boom Precision Elec)
Asian Brands
Mfr. Part #:
XH-10A
Package:
Through Hole,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH 10POS 2.5mm
Description:
Connector Header 10 position 2.5mm Pitch Through Hole
Datasheet:
BOOMELE(Boom Precision Elec) XH-10A
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Y-Width of Bottom Edge on Board:
5.8mm
Reference Series:
XH
Pins Structure:
1x10P
Contact Plating:
-
Contact Material:
-;-
Operating Temperature:
-
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2.5mm
Voltage Rating (Max):
-
Number of PINs Per Row:
10
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
27.5mm
Z-Height of the Board:
7mm
Row Spacing:
-
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
