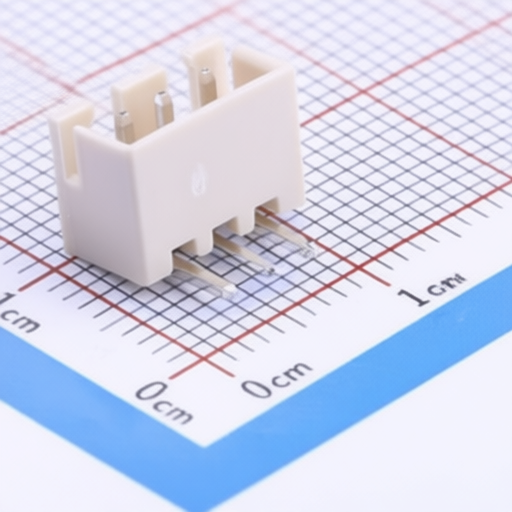

BOOMELE(Boom Precision Elec) XH-3AW
Manufacturer:
BOOMELE(Boom Precision Elec)
Asian Brands
Mfr. Part #:
XH-3AW
Package:
Through Hole,Right Angle,P=2.5mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 3POS 2.5mm
Description:
Connector Header 3 position 2.5mm Pitch Right Angle
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.5mm
Y-Width of Bottom Edge on Board:
7.2mm
Pins Structure:
1x3P
Reference Series:
XH
Contact Plating:
-
Contact Material:
-;-
Operating Temperature:
-
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2.5mm
Voltage Rating (Max):
-
Number of PINs Per Row:
3
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
10mm
Z-Height of the Board:
5.8mm
Row Spacing:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
BOOMELE(Boom Precision Elec)
940 Products
Boom Precision Electronics Co., Ltd.Zhejiang (former Yueqing Boom Electronics CO.,LTD), is a manufacturer engaged in development and manufacturing of various electronic connectors. The products are widely used in household appliances, computers, communication networks, optical, toys and other fields. It has powerful technical force, with over 500 employees (more than 100 medium and senior management and technical personnel), 6000m2 factory buildings, complete precision mold processing equipment and product automation production lines. It's capable of developing more than 300 sets of molds, with the annual output of 3 billion connectors and over 6 billion terminals.
