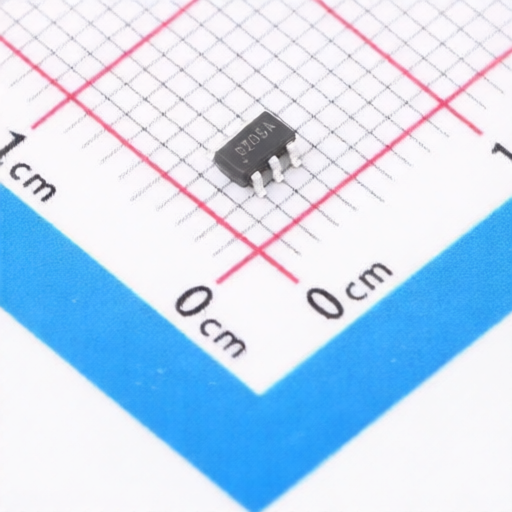

baocheng 8205
Manufacturer:
baocheng
Asian Brands
Mfr. Part #:
8205
Package:
TSSOP-8
Customer #:
Key Attributes:
MOSFET N-CH 20V 5A TSSOP-8
Description:
N-Channel 20V 5A 2W Surface Mount TSSOP-8
Datasheet:
baocheng 8205
Products Specifications
Manufacturer:
Package:
TSSOP-8
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
5A
RDS(on):
34mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
74.69pF
Output Capacitance(Coss):
98.48pF
Input Capacitance(Ciss):
522.3pF
Pd - Power Dissipation:
2W
Gate Charge(Qg):
8.2nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
baocheng
542 Products
Shandong Baocheng Electronics Co., Ltd.
was established in 2017 (formerly Qingdao Haizhi Semiconductor Co., Ltd.). It is a technology-based private enterprise engaged in the R&D and production of semiconductor rectifier chips, power Zener chips, and TVS chips; packaging and testing of rectifier bridges, diodes, high-voltage silicon stacks and MOSFETs; integrating R&D, production, and sales. The company produces glass passivated chips of various sizes. It has related production lines with multiple packaging shapes, the rated current range of the rectifier device is 0.8A~35A, and the rated reverse voltage is 100V~1200V. These products are widely used in lighting, smart charging, home appliances, power supplies, security, instrumentation and other industries. Baocheng Electronics adheres to the principle of "survive by quality and develop by reputation," establishing a complete management system, forming an excellent management model, providing customers with excellent after-sales service
