Bestirpower BCBF65N45M1
Manufacturer:
Bestirpower
Asian Brands
Mfr. Part #:
BCBF65N45M1
Package:

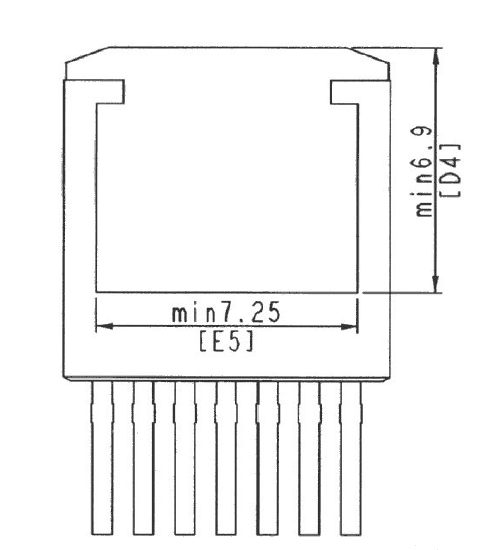

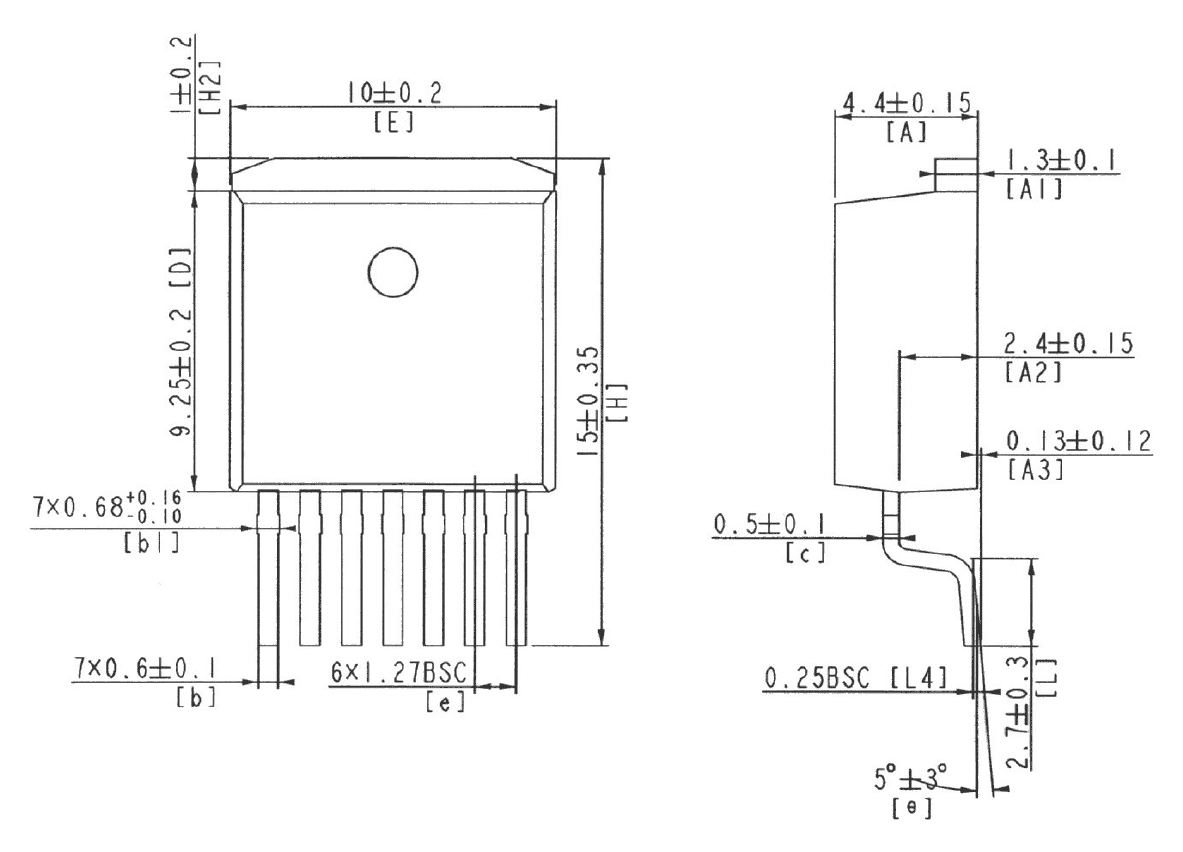

TO-263-7L
Customer #:
Description:
650V 44A 45mΩ 2.8V 150W TO-263-7L Single FETs, MOSFETs RoHS
Datasheet:
Bestirpower BCBF65N45M1
Products Specifications
Manufacturer:
Package:
TO-263-7L
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
44A
Operating Temperature -:
-55℃~+175℃
RDS(on):
45mΩ
Gate Threshold Voltage (Vgs(th)):
2.8V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
9.1pF
Input Capacitance(Ciss):
1.048nF
Output Capacitance(Coss):
131pF
Pd - Power Dissipation:
150W
Gate Charge(Qg):
56nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Bestirpower
148 Products
