ARK micro FTE02P15G
Manufacturer:
ARK micro
Asian Brands
Mfr. Part #:
FTE02P15G
Package:
SOP-8
Customer #:
Key Attributes:
MOSFET P-CH 150V 2.3A SOP-8
Description:

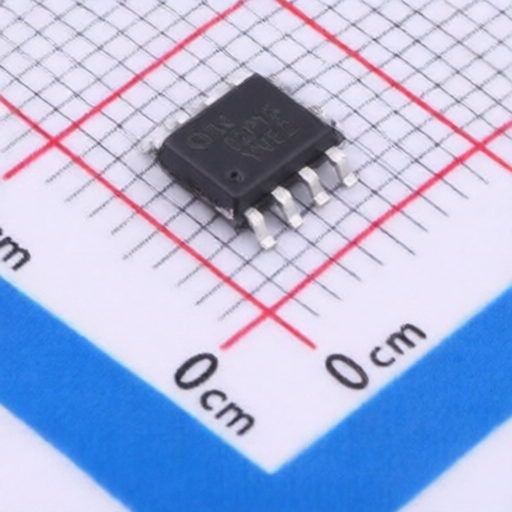

P-Channel 150V 2.3A 2.5W Surface Mount SOP-8
Datasheet:
ARK micro FTE02P15G
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
150V
Current - Continuous Drain(Id):
2.3A
RDS(on):
200mΩ@10V,1.3A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.8V
Reverse Transfer Capacitance (Crss@Vds):
38.4pF@25V
Number:
1 P-Channel
Pd - Power Dissipation:
2.5W
Input Capacitance(Ciss):
1.42nF
Gate Charge(Qg):
35.1nC@120V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
