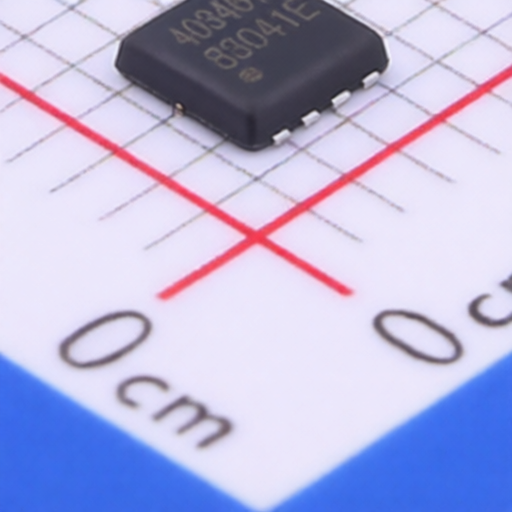

APEC AP4034GYT-HF
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP4034GYT-HF
Package:
PMPAK(3x3)
Customer #:
Key Attributes:
MOSFET N-CH 30V 15.5A PMPAK(3x3)
Description:
N-Channel 30V 15.5A 3.57W Surface Mount PMPAK(3x3)
Products Specifications
Manufacturer:
Package:
PMPAK(3x3)
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
15.5A
Operating Temperature -:
-55℃~+150℃
RDS(on):
9mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
160pF
Number:
1 N-channel
Input Capacitance(Ciss):
2.72nF
Pd - Power Dissipation:
3.57W
Gate Charge(Qg):
24nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
