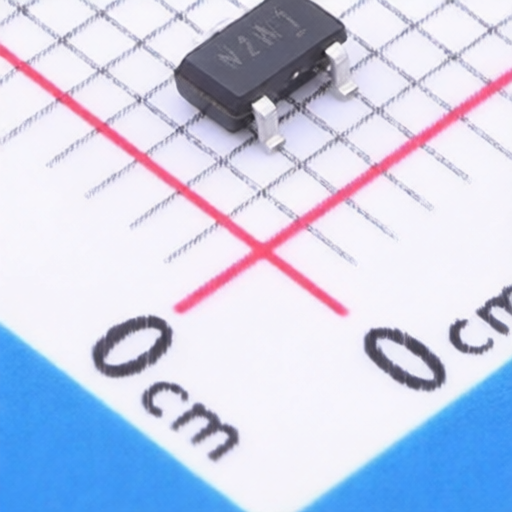

APEC AP2302GN
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP2302GN
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 3.2A SOT-23
Description:
N-Channel 20V 3.2A 1.38W Surface Mount SOT-23
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
3.2A
RDS(on):
115mΩ@2.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.2V@250uA
Reverse Transfer Capacitance (Crss@Vds):
50pF
Number:
1 N-channel
Input Capacitance(Ciss):
145pF
Pd - Power Dissipation:
1.38W
Gate Charge(Qg):
4.4nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
