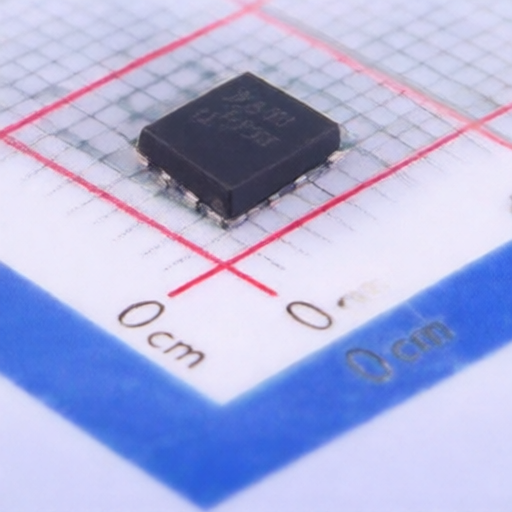

APEC AP3C023AMT
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP3C023AMT
Package:
PMPAK-5x6
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR PMPAK-5x6
Description:
N-Channel+P-Channel Array 3.57W Surface Mount PMPAK-5x6
Products Specifications
Manufacturer:
Package:
PMPAK-5x6
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
12A;10A
RDS(on):
10.4mΩ@10V;23.5mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3V;2.5V
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
130pF;160pF
Number:
1 N-Channel + 1 P-Channel
Input Capacitance(Ciss):
1.45nF;1.55nF
Output Capacitance(Coss):
220pF;235pF
Pd - Power Dissipation:
3.57W
Gate Charge(Qg):
12nC;13.5nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
