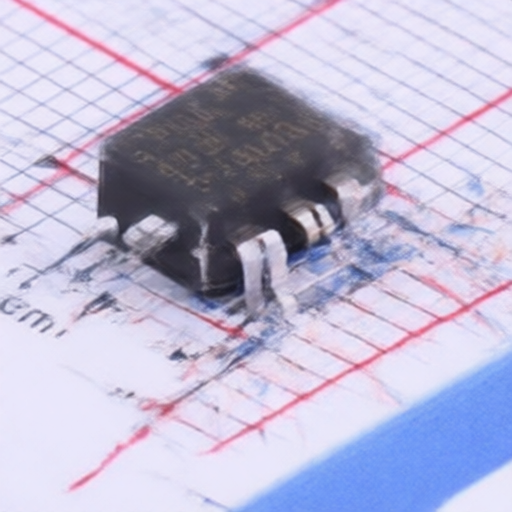

APEC AP94T07GH
Manufacturer:
APEC
Asian Brands
Mfr. Part #:
AP94T07GH
Package:
TO-252
Customer #:
Key Attributes:
MOSFET N-CH 75V 75A TO-252
Description:
N-Channel 75V 75A 125W Surface Mount TO-252
Products Specifications
Manufacturer:
Package:
TO-252
Drain to Source Voltage:
75V
Current - Continuous Drain(Id):
75A
Operating Temperature -:
-55℃~+175℃@(Tj)
RDS(on):
8mΩ@10V,40A
Gate Threshold Voltage (Vgs(th)):
5V
Reverse Transfer Capacitance (Crss@Vds):
245pF@25V
Number:
1 N-channel
Input Capacitance(Ciss):
2.35nF@25V
Pd - Power Dissipation:
125W
Gate Charge(Qg):
58nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APEC
146 Products
Established in 1998, APEC is the first company to successfully integrate the 6-inch DMOS process in Taiwan with ISO9001 certification. APEC provides total solutions for new power requirements in MOSFETs, IGBTs, and Power ICs. The company’s products are broadly applied in the computing, consumer electronics, display, communications and industrial segments.
