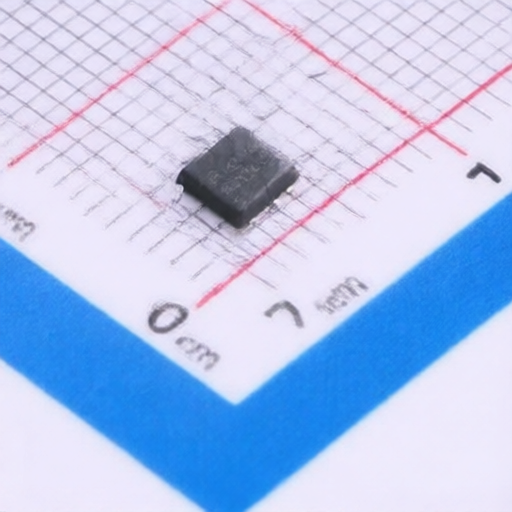

ALLPOWER AP2317QD
Manufacturer:
ALLPOWER
Asian Brands
Mfr. Part #:
AP2317QD
Package:
PDFN-8L(3.3x3.3)
Customer #:
Key Attributes:
MOSFET P-CH ARR 20V 12A PDFN-8L(3.3x3.3)
Description:
P-Channel 20V 12A 15W Surface Mount PDFN-8L(3.3x3.3)
Products Specifications
Manufacturer:
Package:
PDFN-8L(3.3x3.3)
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
12A
RDS(on):
28mΩ@2.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
210pF
Number:
2 P-Channel
Input Capacitance(Ciss):
1.73nF@6V
Pd - Power Dissipation:
15W
Gate Charge(Qg):
19.5nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ALLPOWER
286 Products
Jiangsu All Power
Microelectronics Co., Ltd.
(hereinafter referred to as "ALLPOWER") was established in 2016. As a high-tech enterprise, ALLPOWER specializes in the research, development, and sales of power semiconductor electronic components. The company is headquartered in Shenzhen, China, with branches in South Korea and Guangzhou. Leveraging its strong independent R&D capabilities and advanced manufacturing expertise, ALLPOWER delivers over 400 million high-performance semiconductor products annually. Its product portfolio includes medium- and low-voltage MOSFETs, AC-DC power management chips, and more. ALLPOWER has become a trusted long-term partner to industries such as computing, network communications, consumer electronics, mobile phones, and batteries, with its products being exported to international markets and markets within the country.
