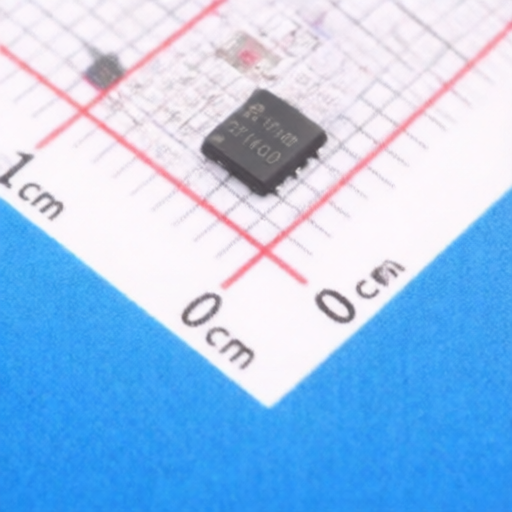

ALLPOWER AP2714QD
Manufacturer:
ALLPOWER
Asian Brands
Mfr. Part #:
AP2714QD
Package:
PDFN3x3-8
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 40V 16A PDFN3x3-8
Description:
N-Channel+P-Channel Array 40V 16A 21W Surface Mount PDFN3x3-8
Products Specifications
Manufacturer:
Package:
PDFN3x3-8
Drain to Source Voltage:
40V
Current - Continuous Drain(Id):
16A
Operating Temperature -:
-40℃~+150℃
RDS(on):
17mΩ@10V;27mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1.6V
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
72pF;102pF
Number:
1 N-Channel + 1 P-Channel
Output Capacitance(Coss):
84pF;134pF
Input Capacitance(Ciss):
1.05nF;1.415nF
Pd - Power Dissipation:
21W
Gate Charge(Qg):
11nC@10V;11.5nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
