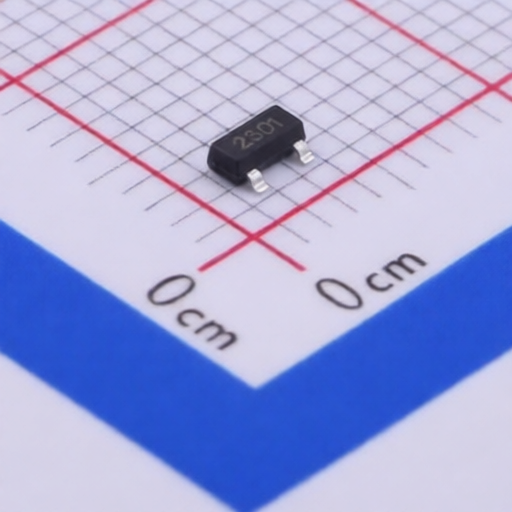

ALLPOWER AP2301
Manufacturer:
ALLPOWER
Asian Brands
Mfr. Part #:
AP2301
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 2A SOT-23
Description:
P-Channel 20V 2A 1W Surface Mount SOT-23
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
75mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Reverse Transfer Capacitance (Crss@Vds):
58pF@10V
Number:
1 P-Channel
Output Capacitance(Coss):
67pF
Input Capacitance(Ciss):
503pF
Pd - Power Dissipation:
1W
Gate Charge(Qg):
4.1nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ALLPOWER
286 Products
Jiangsu All Power
Microelectronics Co., Ltd.
(hereinafter referred to as "ALLPOWER") was established in 2016. As a high-tech enterprise, ALLPOWER specializes in the research, development, and sales of power semiconductor electronic components. The company is headquartered in Shenzhen, China, with branches in South Korea and Guangzhou. Leveraging its strong independent R&D capabilities and advanced manufacturing expertise, ALLPOWER delivers over 400 million high-performance semiconductor products annually. Its product portfolio includes medium- and low-voltage MOSFETs, AC-DC power management chips, and more. ALLPOWER has become a trusted long-term partner to industries such as computing, network communications, consumer electronics, mobile phones, and batteries, with its products being exported to international markets and markets within the country.
