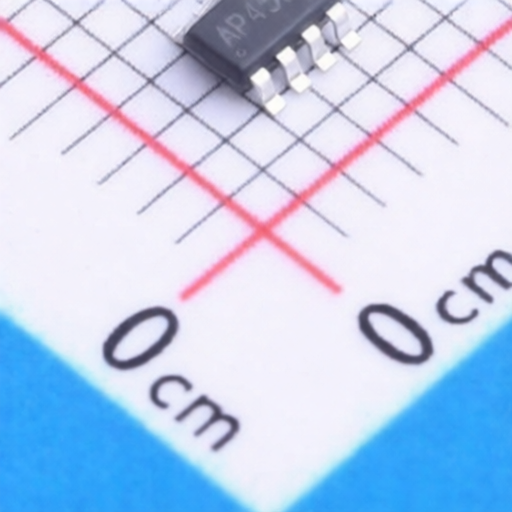

ALLPOWER AP4580
Manufacturer:
ALLPOWER
Asian Brands
Mfr. Part #:
AP4580
Package:
SOT-23-8L
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 20V 2A SOT-23-8L
Description:
N-Channel+P-Channel Array 20V 2A 1.4W Surface Mount SOT-23-8L
Products Specifications
Manufacturer:
Package:
SOT-23-8L
Drain to Source Voltage:
20V
Configuration:
Full-Bridge
Current - Continuous Drain(Id):
2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
146mΩ@4.5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
34pF
Number:
2 N-Channel + 2 P-Channel
Output Capacitance(Coss):
100pF
Input Capacitance(Ciss):
290pF
Pd - Power Dissipation:
1.4W
Gate Charge(Qg):
3nC@6V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
