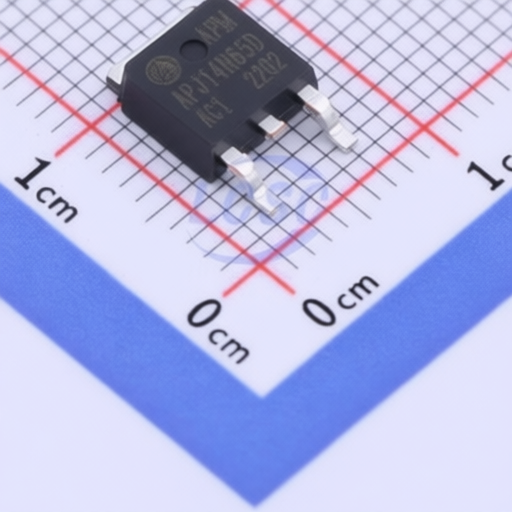

A Power microelectronics APJ14N65D
Manufacturer:
A Power microelectronics
Asian Brands
Mfr. Part #:
APJ14N65D
Package:
TO-252-3
Customer #:
Key Attributes:
MOSFET N-CH 650V 8A TO-252-3
Description:
N-Channel 650V 8A 25.5W Surface Mount TO-252-3
Datasheet:
A Power microelectronics APJ14N65D
Products Specifications
Manufacturer:
Package:
TO-252-3
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
650mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
1.32pF@650V
Number:
1 N-channel
Pd - Power Dissipation:
25.5W
Input Capacitance(Ciss):
438pF@650V
Gate Charge(Qg):
11nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
A Power microelectronics
16 Products
Shenzhen APM-microelectronics Technology Co., Ltd., formerly a wholly-owned subsidiary of Taiwan Hanlei Technology Co., Ltd., became independent in 2017. At present, in Shenzhen, Taiwan, R&D institutions have been set up respectively. It is a semiconductor R&D and design company integrating R&D, production and sales. The company has been committed to the research and development and production of integrated circuits and power devices since 2017. At present, it has 4 independent and controllable packaging lines in Zhongshan, and 1,700 products are on sale. At present, the factory meets the quality certification systems such as 16949 and ISO9001, and APM's own brand products meet Rosh Reach halogen and high reliability AECQ101 certification.
