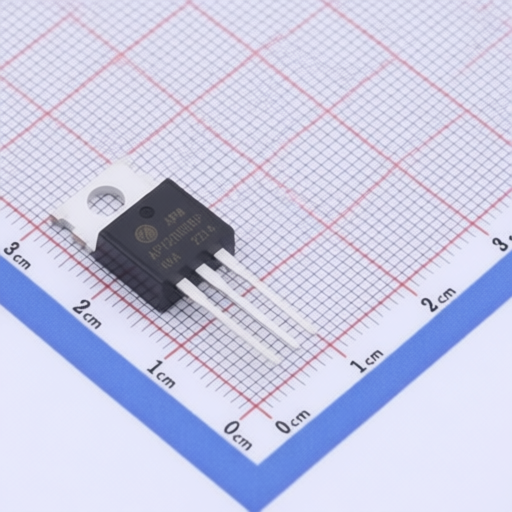

A Power microelectronics AP120N06P
Manufacturer:
A Power microelectronics
Asian Brands
Mfr. Part #:
AP120N06P
Package:
TO-220-3L
Customer #:
Key Attributes:
MOSFET N-CH 65V 125A TO-220-3L
Description:
N-Channel 65V 125A 172W Through Hole TO-220-3L
Datasheet:
A Power microelectronics AP120N06P
Products Specifications
Manufacturer:
Package:
TO-220-3L
Drain to Source Voltage:
65V
Current - Continuous Drain(Id):
125A
Operating Temperature -:
-55℃~+150℃
RDS(on):
5.6mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
306pF
Number:
1 N-channel
Output Capacitance(Coss):
521pF
Input Capacitance(Ciss):
3.135nF
Pd - Power Dissipation:
172W
Gate Charge(Qg):
77nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
