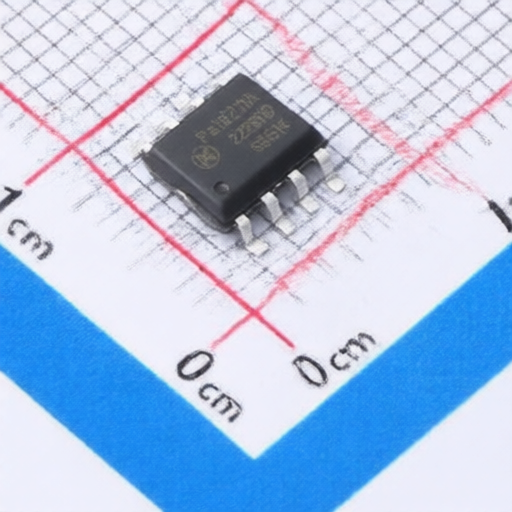

2Pai Semi Pai8211A-SR
Manufacturer:
2Pai Semi
Asian Brands
Mfr. Part #:
Pai8211A-SR
Package:
SOIC-8
Customer #:
Key Attributes:
Single-channel gate driver with 3.75 kVrms/5.0 kVrms isolation voltage
Description:
6A 15ns 12ns 6A SOIC-8 Isolators - Gate Drivers RoHS
Datasheet:
2Pai Semi Pai8211A-SR
Products Specifications
Category:
Manufacturer:
Package:
SOIC-8
Operating Temperature:
-40℃~+125℃@(Ta)
Isolation voltage(Vrms):
3750
Propagation Delay(tpd):
65ns;65ns
Load Type:
IGBT;MOSFET
Current - Output High(IOH):
6A
Rise Time:
15ns
Voltage - Supply:
9.5V~33V;2.5V~5.5V
Quiescent Current(Iq):
1200uA
Fall Time:
12ns
CMTI(kV/us):
100kV/us
Number of Channels:
1
Current - Output Low(IOL):
6A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
