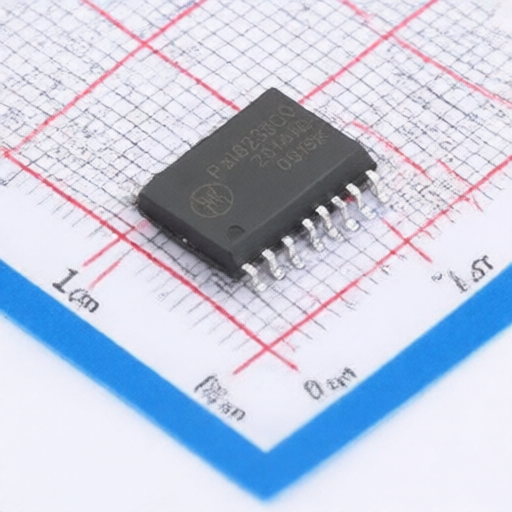

2Pai Semi Pai8233CQ-WR
Manufacturer:
2Pai Semi
Asian Brands
Mfr. Part #:
Pai8233CQ-WR
Package:
SOIC-14-300mil
Customer #:
Key Attributes:
5 kVRMS dual-channel isolated gate driver
Description:
4A 18ns 12ns 8A SOIC-14-300mil Isolators - Gate Drivers RoHS
Datasheet:
2Pai Semi Pai8233CQ-WR
Products Specifications
Category:
Manufacturer:
Package:
SOIC-14-300mil
Driven Configuration:
Low Side;High Side;Half-Bridge
Operating Temperature:
-40℃~+125℃@(Ta)
Propagation Delay(tpd):
30ns;30ns
Isolation voltage(Vrms):
5000
Load Type:
IGBT;MOSFET
Current - Output High(IOH):
4A
Quiescent Current(Iq):
500uA
Rise Time:
18ns
Voltage - Supply:
9.2V~25V;3V~5.5V
Fall Time:
12ns
CMTI(kV/us):
100kV/us
Number of Channels:
2
Current - Output Low(IOL):
8A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
2Pai Semi
116 Products
2PAI Semiconductor(Shanghai) Co., Ltd.
(hereinafter referred to as "2PAISemi") was established in 2017, focusing on the design and development of high-performance and high-quality analog chips, and dedicated to becoming a global technology-leading supplier of high-performance analog integrated circuit products. The company's products include a series of digital isolators, drivers, interfaces, samplers, and they are widely used in electric vehicles, industrial control, digital power, smart appliances and other fields. With original electric intelligent attenuation technology (iDivider), 2PAISemi has won many invention patents in the isolation field and achieved a breakthrough in isolation chips within China. Since its inception, the company has always adhered to the action concept of "creating new values with chips," starting from the essence of the problem, exploring new solutions, while keeping up with the changes in market demand, adhering to innovation and producing high-quality, co
