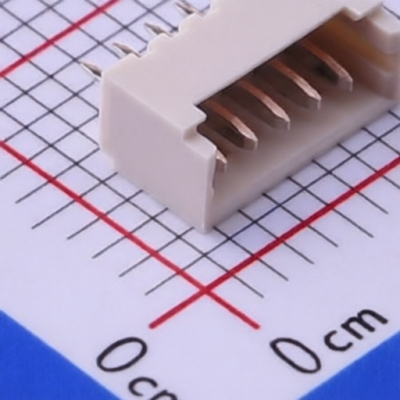

MOLEX 530470510
Manufacturer:
MOLEX
Mfr. Part #:
530470510
Package:
Through Hole,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER TH 5POS 1.25mm
Description:
Connector Header 5 position 1.25mm Pitch 1A Through Hole -40℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,P=1.25mm
Reference Series:
PicoBlade(MX 1.25)
Contact Material:
Phosphor bronze
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Mounting Type:
Through Hole
Number of PINs:
5P
Operating Temperature:
-40℃~+85℃
Plastic Material:
PA
Pitch:
1.25mm
Number of PINs Per Row:
5
Contact Plating:
Tin
Current Rating:
1A
X-Length of Bottom Edge on Board (Spacing Line):
8mm
Voltage Rating (Max):
125V
Row Spacing:
-
Pin Structure:
1x5P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
