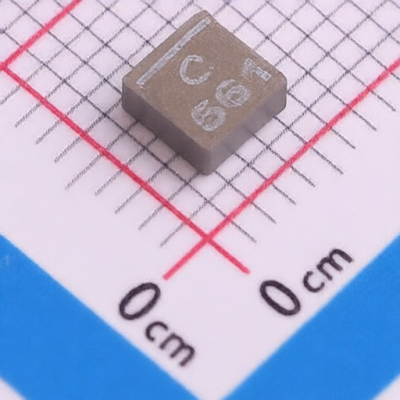

Coilcraft XEL4020-561MEC
Manufacturer:
Coilcraft
Mfr. Part #:
XEL4020-561MEC
Package:
SMD,4x4mm
Customer #:
Key Attributes:
FIXED IND 560nH SMD,4x4mm
Description:
13.8A 560nH 8mΩ 11.3A ±20% SMD,4x4mm Fixed Inductors RoHS
Products Specifications
Manufacturer:
Package:
SMD,4x4mm
Current Rating:
13.8A
Inductance:
560nH
DC Resistance(DCR):
8mΩ
Current - Saturation(Isat):
11.3A
Ratings:
AEC-Q200
Tolerance:
±20%
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8504500000 |
| USHTS | 8504508000 |
| TARIC | 8504500010 |
| CAHTS | 8504500000 |
| BRHTS | 85045000 |
| INHTS | 85045010 |
| MXHTS | 8504.50.01 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Coilcraft
236 Products
Founded in 1945 and headquartered in Cary, Illinois, Coilcraft is a leader in the design, manufacture, and distribution of high-performance magnetic components. It primarily produces RF chip inductors, power magnetics, and filters.
