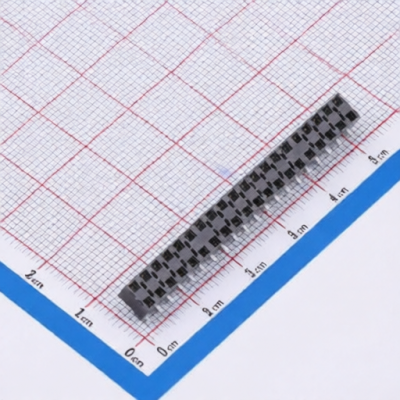

Samtec HLE-120-02-F-DV-BE-A
Manufacturer:
Samtec
Mfr. Part #:
HLE-120-02-F-DV-BE-A
Package:
SMD,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 40POS 2.54mm DUAL ROW SMD
Description:
Female Header 40 Position 2.54mm Pitch Dual Row Surface Mount -55℃~+125℃
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm
Voltage Rating:
400V
Mounting Type:
Surface Mount,Vertical
Operating Temperature:
-55℃~+125℃
Number of Positions:
40P
Current Rating:
4.1A
Insulation Height:
3.66mm
Pitch:
2.54mm
Number of Rows:
2
Contact Plating:
Tin
Row Spacing:
2.54mm
Contact Material:
Beryllium copper
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 11 |
| Sales Unit | Piece |
