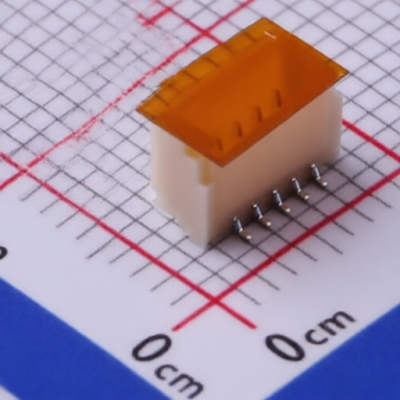

JST BM05B-SRSS-TBT(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
BM05B-SRSS-TBT(LF)(SN)
Package:
SMD,P=1mm
Customer #:
Key Attributes:
CONN HEADER SMD 5POS 1mm
Description:
Connector Header 5 position 1mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Reference Series:
SH
Contact Material:
Copper alloy
Color:
White
Flame Retardant Rating:
UL94V-0
Number of Rows:
1
Supplementary Features:
Auxiliary Solder Pin
Mounting Type:
Surface Mount,Vertical
Number of PINs:
5P
Operating Temperature:
-25℃~+85℃
Plastic Material:
PA
Pitch:
1mm
Number of PINs Per Row:
5
Contact Plating:
Tin
Current Rating:
1A
X-Length of Bottom Edge on Board (Spacing Line):
7mm
Voltage Rating (Max):
50V
Row Spacing:
-
Pin Structure:
1x5P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
