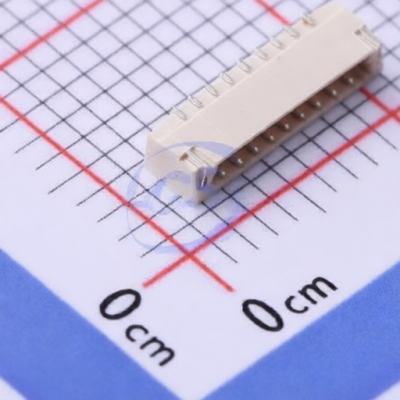

HDGC HDGC0802WR-S-9P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGC0802WR-S-9P
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 9POS 0.8mm
Description:
Connector Header 9 position 0.8mm Pitch 0.5A Surface Mount, Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Reference Series:
-
Contact Material:
-
Color:
Beige
Flame Retardant Rating:
-
Number of Rows:
1
Supplementary Features:
Auxiliary Solder Pin
Mounting Type:
Surface Mount, Right Angle
Number of PINs:
9P
Operating Temperature:
-25℃~+85℃
Plastic Material:
-
Pitch:
0.8mm
Number of PINs Per Row:
9
Contact Plating:
-
Current Rating:
500mA
X-Length of Bottom Edge on Board (Spacing Line):
9.38mm
Voltage Rating (Max):
30V
Row Spacing:
-
Pin Structure:
1x9P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3500 |
| Sales Unit | Piece |
