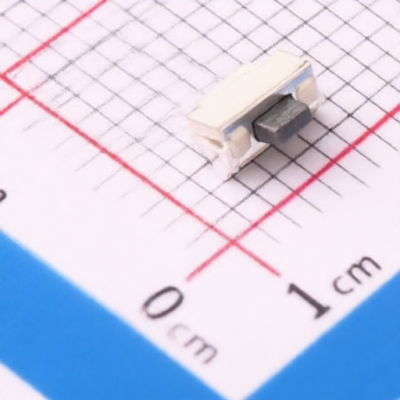

hanxia HX TS24ZJ 160gf
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX TS24ZJ 160gf
Package:
SMD
Customer #:
Description:
Tactile Switch SPST 160gf 3.5mm SMD (SMT) Tab 4.65mm x 1.9mm Surface Mount, Right Angle
Products Specifications
Category:
Manufacturer:
Package:
SMD
with Bracket:
With Bracket
PressForce:
1.6N
Length:
4.65mm
Height:
3.5mm
Voltage Rating:
12V
Switching Life:
30,000 cycles
Operating Temperature:
-25℃~+70℃
Width:
1.9mm
Installation Method:
Surface Mount, Right Angle
Termination Style:
SMD(SMT) Tab
Actuator Style:
Square Button
With Lamp:
No
Circuit:
SPST
Actuator/Cap Color:
Black
IP Rating:
-
Contact Current:
50mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
