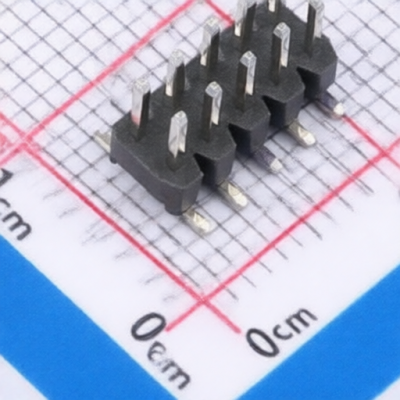

hanxia HX PZ-2.0-02-05-S-PB2.5
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PZ-2.0-02-05-S-PB2.5
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER 10POS 2mm DUAL ROW SMD
Description:
Pin Header 10 Position 2mm Pitch Dual Row -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Contact Material:
Brass
Color:
Black
Circluar Pins/Square Pins:
Pin Header
Number of Rows:
2
Mounting Type:
Surface Mount,Vertical
Supplementary Features:
-
Insulation Height:
2mm
Length of Mating Pin:
3.8mm
Length of End Connection Pin:
-
Number of PINs:
10P
Operating Temperature:
-40℃~+105℃
Pitch:
2mm
Current Rating:
1.5A
Contact Plating:
Gold
Voltage Rating (Max):
500V
Row Spacing:
2mm
Pin Structure:
2x5P
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
hanxia
1862 Products
Shenzhen Hanxia Electronics Co., Ltd
(hereinafter referred to as "HANXIA") was established in 2020. It is a high-tech enterprise focusing on the research and development and manufacturing of tact switches. The company's main products include tact switches, USB connectors, DC sockets, headphone jacks, etc., which are mainly used in automotive electronics, medical electronics, industrial equipment, new energy, consumer electronics, household appliances and other fields. HANXIA adheres to the concept of "development by quality and development by credit" to ensure the excellent quality of each product.
