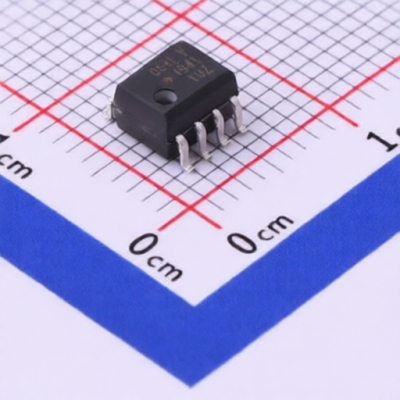

Broadcom ACPL-054L-560E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-054L-560E
Package:
SO-8
Customer #:
Key Attributes:
Low Power, 1 MBd Digital Optocoupler
Description:
8mA 1Mbit/s 24V 5V 2.7V~24V 1.5V DC SO-8 Transistor, Photovoltaic Output Optoisolators RoHS
Products Specifications
Manufacturer:
Package:
SO-8
Output Current:
8mA
Data Rate:
1Mbit/s
Low Level Delay Time:
1.4us
High Level Delay Time:
1us
Load Voltage:
24V
Reverse Voltage:
5V
Voltage - Supply:
2.7V~24V
Current transfer ratio:
93%
Voltage - Forward(Vf):
1.5V
Forward Current(If):
20mA
CMTI(kV/us):
25kV/us
Pd - Power Dissipation:
45mW
Number of Channels:
2
Operating Temperature:
-40℃~+105℃
Input threshold current:
10mA
Input type:
DC
Isolation Voltage(Vrms):
3.75kV
