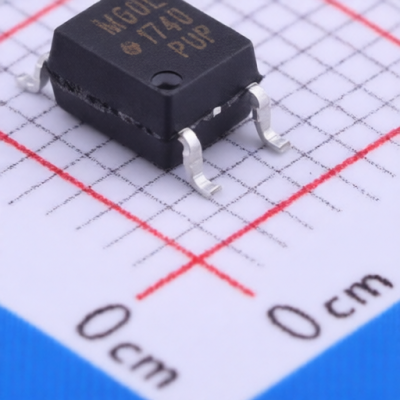

Broadcom ACPL-M60L-500E

Broadcom ACPL-M60L-500E

Name: Broadcom ACPL-M60L-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: ACPL-M60L-500E

Package: SOP-5

Customer #:

Key Attributes: Logic Gate Optocouplers

Description: 50mA 5V 1.5V DC SOP-5 Logic Output Optoisolators RoHS

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Logic Output Optoisolators

Manufacturer:

Broadcom

Package:

SOP-5

Power Dissipation:

85mW

Output Current:

50mA

Low Level Delay Time:

90ns

High Level Delay Time:

75ns

Reverse Voltage:

Voltage - Forward(Vf):

1.5V

Voltage - Supply:

2.7V~3.6V;4.5V~5.5V

Forward Current(If):

20mA

Operating Temperature:

-40℃~+85℃

CMTI(kV/us):

15kV/us

Number of Channels:

Input threshold current:

15mA

Isolation Voltage(Vrms):

3.75kV

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1500
Sales Unit	Piece

Get Best Price

Inquiry

Negotiate

Payment

Shipping
