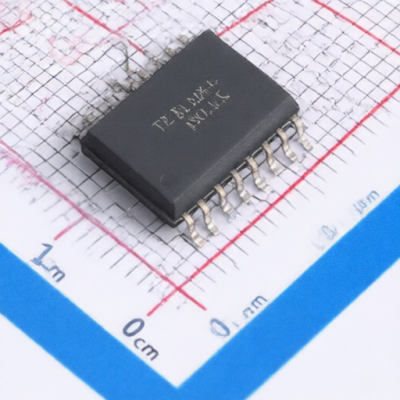

TI ISO5452DWR
Manufacturer:
TI
Mfr. Part #:
ISO5452DWR
Package:
SOIC-16-300mil
Customer #:
Key Attributes:
High CMTI Isolated IGBT and MOSFET Gate Drivers with Separate Outputs and Active Protection Features
Description:
2.5A 37ns 5A SOIC-16-300mil Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-16-300mil
Quiescent Current:
2.8mA
Operating Temperature:
-40℃~+125℃@(Ta)
Propagation Delay(tpd):
110ns;110ns
Isolation voltage(Vrms):
8000
Load Type:
IGBT;MOSFET
Current - Output High(IOH):
2.5A
Voltage - Supply:
15V~30V;2.25V~5.5V
Fall Time:
37ns
CMTI(kV/us):
50kV/us
Current - Output Low(IOL):
5A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
