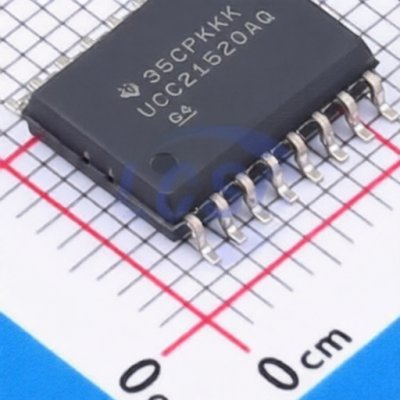

TI UCC21520AQDWRQ1
Manufacturer:
TI
Mfr. Part #:
UCC21520AQDWRQ1
Package:
SOIC-16-300mil
Customer #:
Key Attributes:
Automotive-grade isolated dual-channel gate driver
Description:
Half-Bridge 4A 16ns 12ns 6A SOIC-16-300mil Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-16-300mil
Driven Configuration:
Half-Bridge
Operating Temperature:
-40℃~+150℃@(Tj)
Isolation voltage(Vrms):
5700
Current - Output High(IOH):
4A
Input Logic Level - High:
1.2V~2V
Rise Time:
16ns
Voltage - Supply:
3V~18V;6.5V~25V
Fall Time:
12ns
CMTI(kV/us):
125kV/us
Number of Channels:
2
Current - Output Low(IOL):
6A
Quiescent Current:
2mA
Propagation Delay(tpd):
45ns;45ns
Load Type:
MOSFET;IGBT
Input Logic Level - Low:
0.8V~1.2V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
