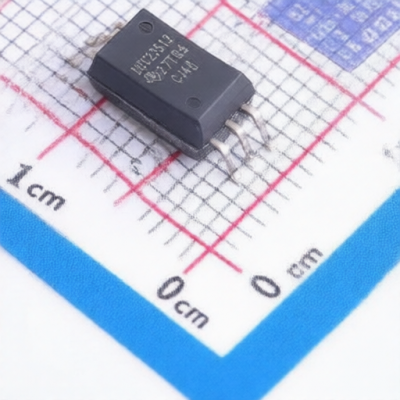

TI UCC23513DWYR
Manufacturer:
TI
Mfr. Part #:
UCC23513DWYR
Package:
SOIC-6-300mil
Customer #:
Key Attributes:
Single-channel isolated gate driver, optically compatible, high peak output current, high isolation rating
Description:
4.5A 28ns 14V~33V 25ns 5.3A SOIC-6-300mil Isolators - Gate Drivers RoHS
Products Specifications
Category:
Manufacturer:
Package:
SOIC-6-300mil
Driven Configuration:
Low Side;High Side
Operating Temperature:
-40℃~+150℃@(Tj)
Isolation voltage(Vrms):
5700
Propagation Delay(tpd):
70ns;70ns
Load Type:
IGBT;MOSFET
Current - Output High(IOH):
4.5A
Rise Time:
28ns
Voltage - Supply:
14V~33V
Fall Time:
25ns
CMTI(kV/us):
150kV/us
Number of Channels:
1
Current - Output Low(IOL):
5.3A
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 850 |
| Sales Unit | Piece |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
TI
26911 Products
Texas Instruments Incorporated designs and manufactures analog technologies, digital signal processing (DSP) and microcontroller (MCU) semiconductors. TI is a leader in semiconductor solutions for analog and digital embedded and applications processing. A global semiconductor company, TI innovates through design, sales and manufacturing operations in more than 30 countries.
