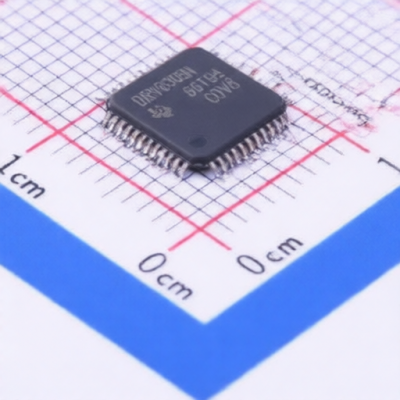

TI DRV8305NPHPR
Manufacturer:
TI
Mfr. Part #:
DRV8305NPHPR
Package:
HTQFP-48(7x7)
Customer #:
Key Attributes:
Three Phase Gate Driver With Current Shunt Amplifiers and Voltage Regulator
Description:
Three Phase MOSFET HTQFP-48(7x7) Motor Drivers, Controllers RoHS
Products Specifications
Manufacturer:
Package:
HTQFP-48(7x7)
Driven Configuration:
Three Phase
Features:
Under Voltage Protection;Over Voltage Protection;Over Current Protection;Over Temperature Protection
Number of Channels:
3
Propagation Delay tpHL:
200ns
Voltage - Supply:
4.4V~45V
Load Type:
MOSFET
Input Logic Level - High:
2V
Operating Temperature:
-40℃~+125℃
Propagation Delay tpLH:
200ns
Input Logic Level - Low:
0V~800mV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
TI
26911 Products
Texas Instruments Incorporated designs and manufactures analog technologies, digital signal processing (DSP) and microcontroller (MCU) semiconductors. TI is a leader in semiconductor solutions for analog and digital embedded and applications processing. A global semiconductor company, TI innovates through design, sales and manufacturing operations in more than 30 countries.
