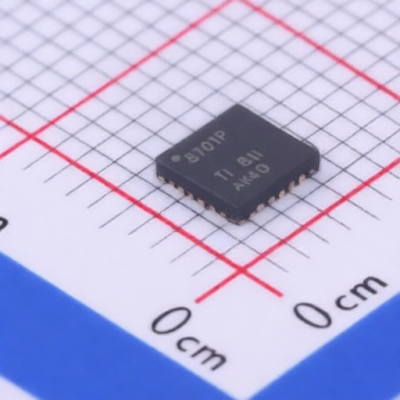

TI DRV8701PRGER
Manufacturer:
TI
Mfr. Part #:
DRV8701PRGER
Package:
VQFN-24-EP(4x4)
Customer #:
Key Attributes:
Brushed DC Motor Full-Bridge Gate Driver
Description:
Full-Bridge MOSFET 150mA 300mA VQFN-24-EP(4x4) Motor Drivers, Controllers RoHS
Products Specifications
Manufacturer:
Package:
VQFN-24-EP(4x4)
Driven Configuration:
Full-Bridge
Features:
Under Voltage Protection;Over Current Protection;Over Temperature Protection
Number of Channels:
4
Voltage - Supply:
5.9V~45V
Quiescent Current(Iq):
6mA
Load Type:
MOSFET
Current - Output High(IOH):
150mA
Input Logic Level - High:
1.5V
Operating Temperature:
-40℃~+125℃
Input Logic Level - Low:
800mV
Current - Output Low(IOL):
300mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
TI
26911 Products
Texas Instruments Incorporated designs and manufactures analog technologies, digital signal processing (DSP) and microcontroller (MCU) semiconductors. TI is a leader in semiconductor solutions for analog and digital embedded and applications processing. A global semiconductor company, TI innovates through design, sales and manufacturing operations in more than 30 countries.
