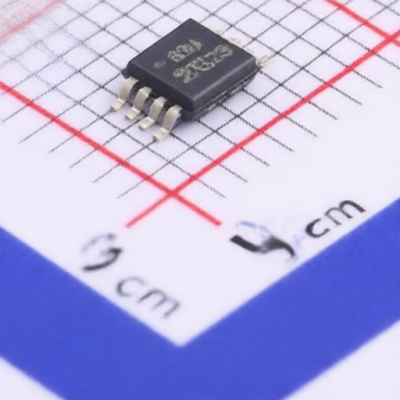

TI UCC27523DGNR
Manufacturer:
TI
Mfr. Part #:
UCC27523DGNR
Package:
HVSSOP-8
Customer #:
Key Attributes:
Dual 5A high-speed low-side gate driver
Description:
Low Side Gate Driver IC MOSFET IGBT HVSSOP-8
Products Specifications
Manufacturer:
Package:
HVSSOP-8
Input Logic Level - Low:
1V~1.2V
Propagation Delay tpLH:
13ns
Propagation Delay tpHL:
13ns
Peak Output Current(Sink):
5A
Rise Time:
7ns
Features:
Under Voltage Protection
Fall Time:
6ns
Current - Output High(IOH):
5A
Load Type:
MOSFET;IGBT
Voltage - Supply:
4.5V~18V
Input Logic Level - High:
1.9V~2.3V
Operating Temperature:
-40℃~+140℃
Driven Configuration:
Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
