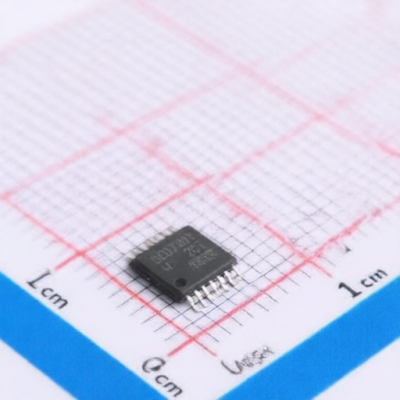

TI UCD7201PWPR
Manufacturer:
TI
Mfr. Part #:
UCD7201PWPR
Package:
HTSSOP-14-EP
Customer #:
Key Attributes:
UCD7201 Digital Control Compatible Dual Low-Side ±4 Amp MOSFET Drivers with Programmable Common Current Sense
Description:
4A 4.5V~15V HTSSOP-14-EP Gate Drivers RoHS
Products Specifications
Manufacturer:
Package:
HTSSOP-14-EP
Input Logic Level - Low:
1.16V~1.5V
Peak Output Current(Sink):
4A
Rise Time:
10ns
Features:
Under Voltage Protection;Over Current Protection
Fall Time:
10ns
Current - Output High(IOH):
4A
Load Type:
MOSFET
Voltage - Supply:
4.5V~15V
Input Logic Level - High:
1.65V~2.08V
Operating Temperature:
-40℃~+105℃
Driven Configuration:
Low Side
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
