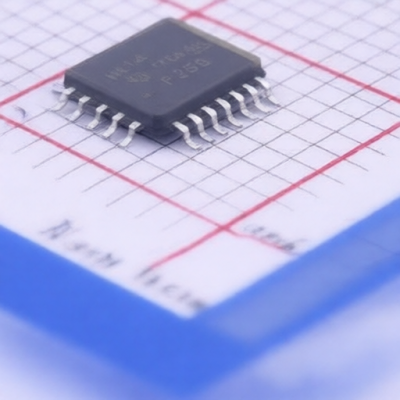

TI SN74AHC14PWR

Name: TI SN74AHC14PWR
Brand: TI

Manufacturer: TI

Mfr. Part #: SN74AHC14PWR

Package: TSSOP-14

Customer #:

Description: Schmitt trigger 10.6ns@5V,50pF 2V~5.5V 2uA 6 1 TSSOP-14 Gates and Inverters RoHS

Products Specifications

Manufacturer:

Package:

TSSOP-14

Input Type:

Schmitt trigger

Propagation Delay:

10.6ns@5V,50pF

Voltage - Supply:

2V~5.5V

Series:

74AHC Series

Operating Temperature:

-40℃~+125℃

Input Logic Level - Low:

900mV~1.65V

Input Logic Level - High:

2.2V~3.85V

Output Logic Level - Low:

500mV

Output Logic Level - High:

1.9V~4.4V

Quiescent Current(Iq):

2uA

Number of Circuits:

Number of Channels:

Current - Output High(IOH):

8mA

Current - Output Low(IOL):

8mA

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8542399000
USHTS	8542390001
TARIC	8542399000
CAHTS	8542390000
BRHTS	85423999
INHTS	85423900
MXHTS	8542.39.99
