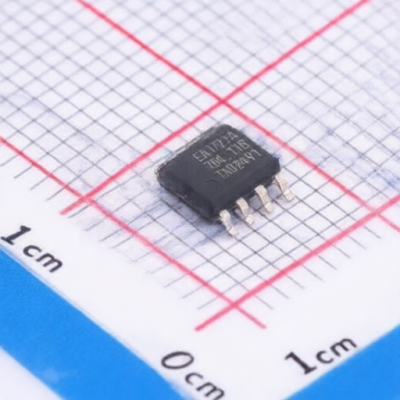

NXP TEA1721AT/N1,118

Name: NXP TEA1721AT/N1,118
Brand: NXP

Manufacturer: NXP

Mfr. Part #: TEA1721AT/N1,118

Package: SOIC-7

Customer #:

Key Attributes: HV start-up flyback controller with integrated MosFET for 5W applications

Description: 22.5kHz~50.5kHz 15V~19V 700V Flyback SOIC-7 AC DC Converters, Offline Switchers RoHS

Products Specifications

Category:

Integrated Circuits (ICs)/Power Management (PMIC)/AC DC Converters, Offline Switchers

Manufacturer:

NXP

Package:

SOIC-7

Operating Temperature:

-40℃~+150℃@(Tj)

Output Current:

Frequency - Switching:

22.5kHz~50.5kHz

Pd - Power Dissipation:

Voltage - Supply:

15V~19V

Voltage - Breakdown:

700V

Topology:

Flyback

Features:

Over Voltage Protection;Under Voltage Protection;Over Temperature Protection;Short Circuit Protection

Duty Cycle(Max):

75%

Feedback System:

Primary-Side Feedback

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2500
Sales Unit	Piece
