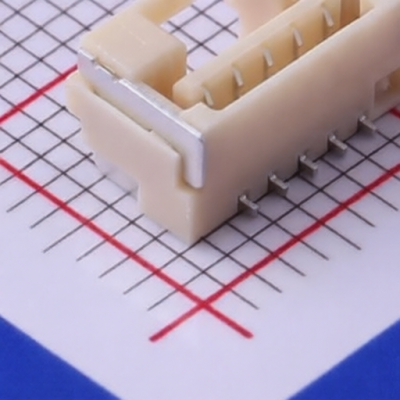

MOLEX 5023820570
Manufacturer:
MOLEX
Mfr. Part #:
5023820570
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 5POS 1.25mm
Description:
Connector Header 5 position 1.25mm Pitch 1A Surface Mount,Vertical -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Number of Pins:
5P
Current Rating:
1A
Reference Series:
-
Voltage Rating:
50V
Color:
White
Operating Temperature:
-40℃~+105℃
Mounting Type:
Surface Mount,Vertical
Contact Plating:
Tin
Contact Material:
Copper alloy
Holes Structure:
1x5P
Pitch:
1.25mm
Number of PINs Per Row:
5
Number of Rows:
1
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1400 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
